Recomended tightening torque camshaft nut, 8 Kgm. (58 Lb.ft.)
Use a folding washer or Loctite to lock the camshaft nut.

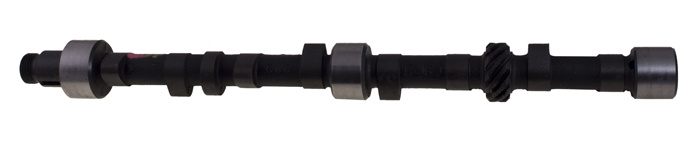

Race cam shaft.
Usually used with Twin Carbs.
Camspec.
Lobeseparation: 101°
Duration SAE.
Intake: 283°. Exhaust: 283°.
Valvelift.
Intake: 11,43 mm. Exhaust: 11,43 mm.
Valve lash.
Intake: 0,43 mm. Exhaust: 0,43 mm.
