Piston kit w/rings B18 Race/0.5higher in the group Volvo / Engines Volvo / Volvo B18 / Crankshaft B18 at VP Autoparts Inc. (275199)

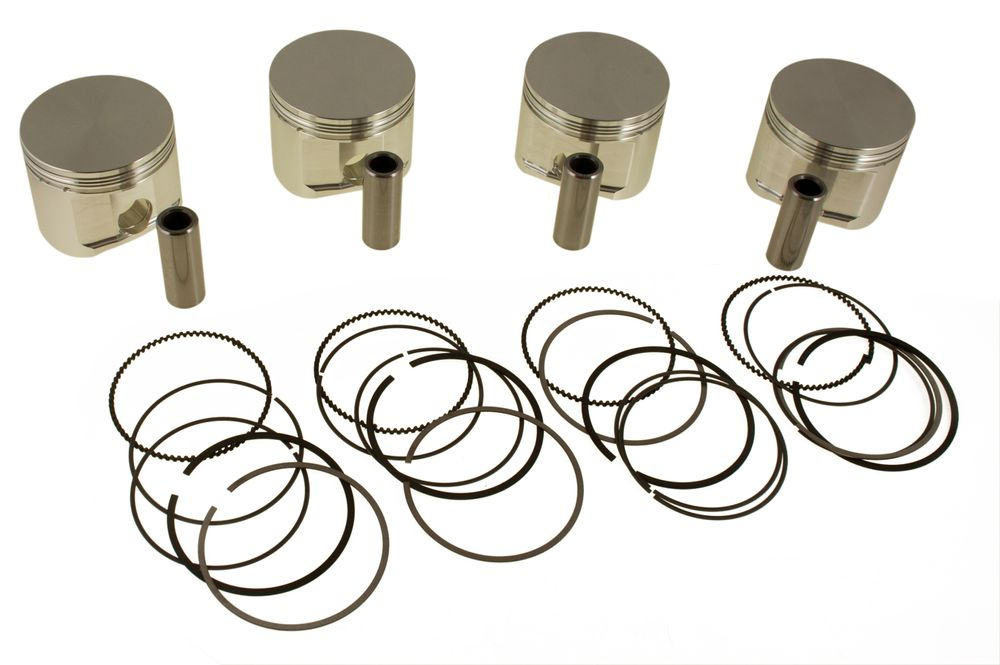

Piston kit w/rings B18 Race/0.5higher

Piston kit w/rings B18 Race/0.5higher

Part no: 275199
In stock
$ 891.45

  • Information
  • Information

    Item GBD334400SC is well suited for honing. See more info below.

    CP Pistons Cylinder Honing Recommendation (for CPN & CPN2)
    For use with CP's CPN and CPN2 piston rings, we recommend plateau
    honing with a cylinder bore cross hatch angle of 35-40°.

    To reach this roughness, the manufacturers of honing machines and accessories
    recommend using for a gray cast iron engine block, and Nikasil cylinders:

    - Conventional stones #220 - #280 grit or
    - Diamond stones # 325 - #550 grit

    After honing, with either conventional or diamond stone, the same
    manufacturers suggest to finish your honing by smoothing the surface
    with a fine grit conventional abraisive (#400 - #600 grit) or to sweep the
    bores with a flexible brush or a nylon bristle plateau honing tool. This is
    necessary to get rid of jagged peaks and folded or torn material.

    IMPORTANT NOTE:
    Be sure to confirm with your honing equiment manufacturer that the recommended
    stone grit will produce the following Rz and Ra roughness recommendations:

    Rz = 59 - 138 µ in (=1.5 - 3.5 µm) or
    Ra = 15 - 35 µ in (=0.4 - 0.9 µ m)

    Recommendations for installation.
    Further recommendations.
    Unit: set
    Delivery:
  • Related parts
  • Possible alternatives
    • Set contains
