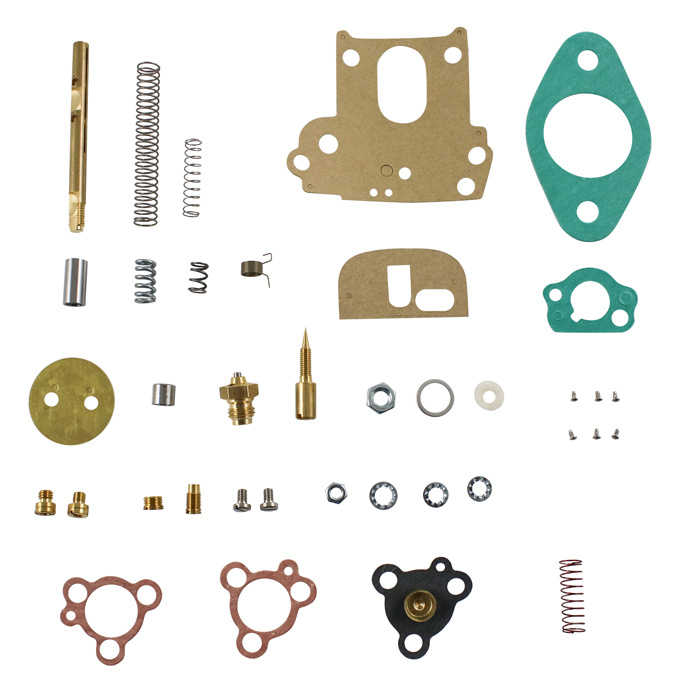

Repair kit Carburettor Zenith 34 VN B16A

Part no: 276413

In stock

$ 143.89


120297	Aluminum washer VN34/36	1 pc.
190481	Nut VN34/VN36	1 pc.
190967	Felt seal ACC Pump Carburettor VN34/VN36	1 pc.
237058	Diaphragm kit B16A/B18A + -1984	1 pc.
237151	Spring VN34/VN36	1 pc.
237382	Needle valve VN34/36, CD175 B20/B30	1 pc.
403882	Gasket Collar VN34/VN36	1 pc.
419002	Bushing Throttle spindle Zenith short	1 pc.
419003	Bushing Throttle spindle Zenith long	1 pc.
71683	Screw, throttle disc/shaft VN	2 pc.
71708	Return spring Carburettor PV/Amazon	1 pc.
71716	Spring Zenith 30/34/36	1 pc.
71726	Spring Zenith 30/34/36	1 pc.
71916	Gasket Float chamber VN34/VN36	1 pc.
71917	Gasket Float chamber-body VN34/VN36	1 pc.
71921	Throttle spindle VN34/VN36	1 pc.
71922	Throttle disc VN34	1 pc.
71941	Jet	1 pc.
71942	Jet	1 pc.
71943	Jet	1 pc.
71944-50	Air jet VN34 "50"	1 pc.
71945	Gasket Carburettor VN34/VN36	1 pc.
71955	Screw Carburettor VN34/VN36	1 pc.
71956	Spring VN34/VN36	1 pc.
940155	Lock washer 6,5x12,1x0,6 mm	1 pc.
950885	Screw nail VN34/VN36	6 pc.
955780	Nut M5-0,8x3,8	1 pc.
955946	Lock washer IZ 5,3	2 pc.
